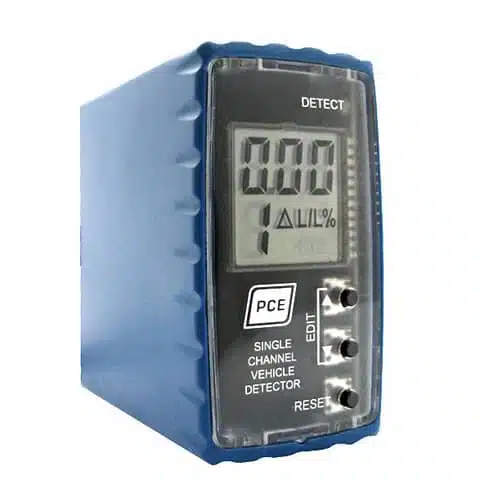

SafePass LD140 Series Diagnostic Loop Detectors

The LD140 series uses cutting edge technology to provide a loop detector with selectable parameters, all programmable from the buttons on the front panel.



The LD140 has all the functions of a normal loop detector plus flexibility and acts as a loop analyser. In addition to changing the function of relays and setting the loop sensitivity there is also an on board vehicle counter.

FOR MORE INFORMATION ON OUR PRODUCTS AND SERVICES,
NEED A QUOTE OR HAVE A QUERY
CALL US ON (07) 3205 1123 OR SUBMIT THIS FORM.

The LD140 counts vehicles as they move over the loop and keeps its value in the event of a power failure, the counter has a maximum count of 999999.  The diagnostic capabilities enable you to quickly check loop inductance, loop faults and set the sensitivity very accurately ensuring no false triggers.

The LD140 Series Loop Detectors include the following features

  • Selectable detect sensitivity
  • Automatic sensitivity boost option
  • Filter timer and extend timer
  • Selectable pulse time
  • Relay 2 mode—Pulse on detect, pulse on undetect, presence or loop fault.
  • Presence mode—Permanent or limited
  • Selectable fail-safe / Fail secure operation
  • Adjustable loop frequency
  • Power fail memory



For more information download our product datasheet.

adobe-PDF-iconSAFEPASS LD140 SERIES LOOP DETECTORS DATASHEET

SpecificationLD140LD142
Power Requirement240vac12/24vac/dc
Presence Relay 1Change over contact 0.5A / 220vac

  • (Failsafe  – normally energised)
  • (Fail secure – normally de-energised)
Presence Relay 2Change over contact 0.5A / 220vac

  • (Pulse on detect – normally de-energised)
  • (Pulse on undetect – normally de-energised)
  • (Presence mode  – normally de-energised)
  • (Loop fault mode   – normally energised)
Response TimeDefault approximately 120ms after the vehicle enters loop.
Adjustable 50ms to 9.00 seconds
IndicatorsLED indicators show: detect state
Detector Tuning Range15—1500uH
Loop FrequencyApprox. 23 -130 KHz
Power Fail Memory20 Seconds
Environmental TrackingAutomatic Compensation
ProtectionLoop isolation transformer with zener diodes and gas discharge tube.
Connector11 Pin connector on the rear of the unit.
Operating Temperature-20°C to 70°C



For more information download our product datasheet.

adobe-PDF-iconSAFEPASS LD140 SERIES LOOP DETECTORS DATASHEET
