M2000-BT Gate Access Controller

$946.00 (Incl GST)

Ideal for car parks, industrial and commercial premises, the M2000-BT controller can be used to control either a single gate or turnstile with access controlled from both the secure and non-secure sides.

Alternatively, one controller can operate two single gates in one direction only.



A key innovation lies in the simple and wireless unit management and all programming via the intuitive Smartphone App.

FOR MORE INFORMATION ON OUR PRODUCTS AND SERVICES,
NEED A QUOTE OR HAVE A QUERY
CALL US ON (07) 3205 1123 OR SUBMIT THIS FORM.
SKU: 220

The M2000-BT access control unit includes a memory of 2000 users, 2 inputs for external readers (proximity readers and / or keyboards), and a 433 MHz radio receiver.

It is designed to operate with two external readers, separate relays allow adjustable times, and anti-passback is standard.

The unit also offers a transfer facility to allow the transfer of programmed data to another 2000 control unit connected through an RS485 serial line.

The M2000-BT Gate Controller includes the following features:

  • 2000 users
  • Built-in 433 MHz receiver
  • 2 Wiegand reader inputs 26, 30, 37 bits or Data Clock
  • 4 auxiliary inputs (2 push-buttons, 2 magnetic loops)
  • 1 RS485 output
  • Anti-passback
  • Events (1000)
  • User time slots
  • Programming: via Smartphone (suitable with Android and iPhone)
  • ABS enclosure DIN rail mount

The M2000-BT App is FREE to download and is available on both Google Play and Apple App stores.

For more information download our product datasheet.

adobe-PDF-iconM2000-BT GATE CONTROLLER DATASHEET



SpecificationsM2000-BT Gate Access Controller
Power supply12vdc
Inputs1 receiver 433,920 MHz
Relay outputs2 independent
Relay trigger time1-180s time-lag
Relay contact capacity2 A
ProgrammingWireless via smartphone
Protection ratingIP 20
Operating temperature -20° to +55° C
Dimensions115 x 90 x 40mm
Weight200g
Time slots10
RecordsYes
Annual clockYes
DIN rail mountYes
Screw fixingYes



Set up and management of the M2000-BT is easy: simply download the App, establish a connection with the M2000-BT unit via Bluetooth, login and select from the wide range of functions from the main menu.

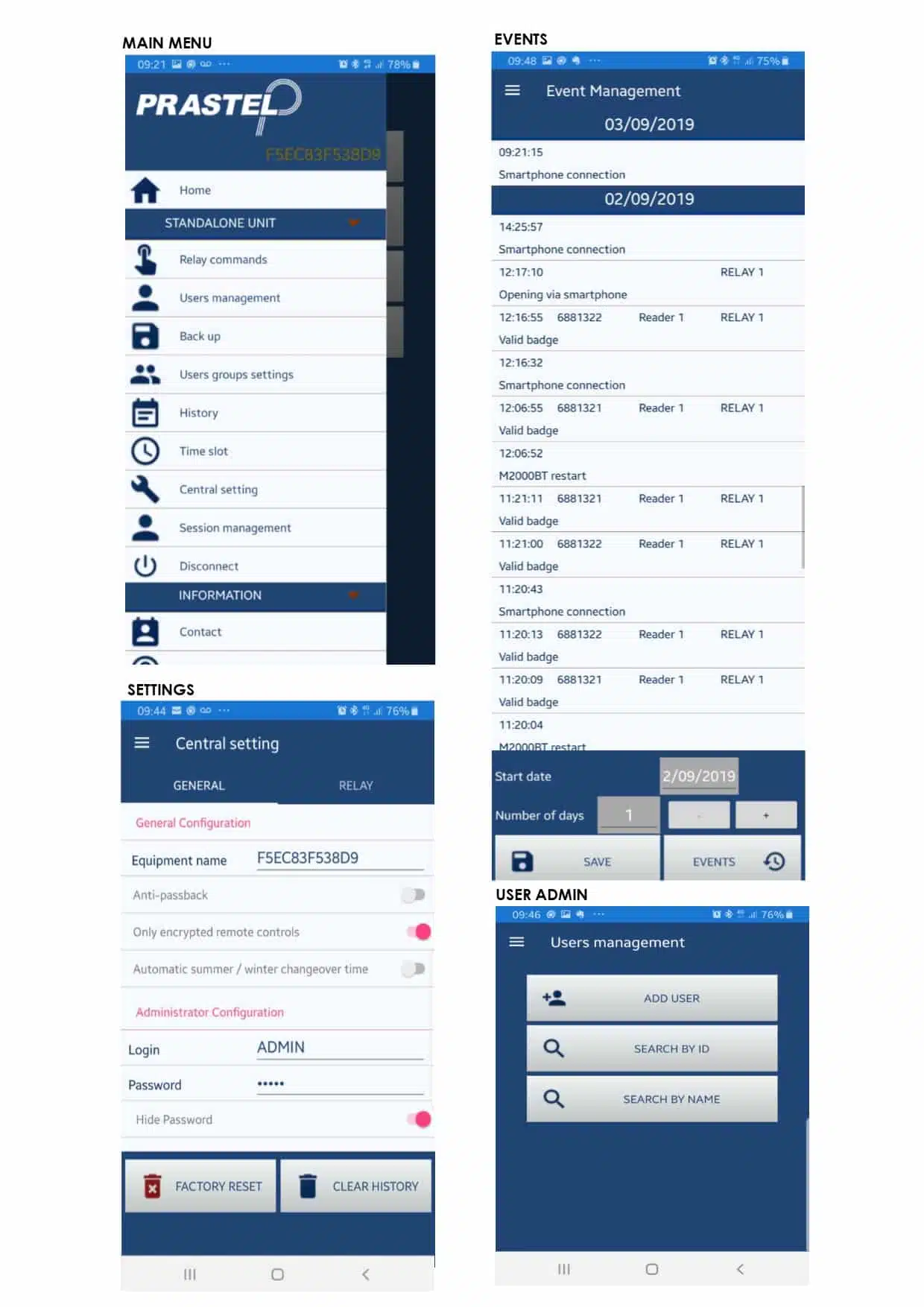

Examples of M2000-BT Screen Views

M2000BT Examples of Screen Views



For more information download our product datasheet.

adobe-PDF-iconM2000-BT GATE CONTROLLER DATASHEET

For information about installation and operating instructions please download our PDF.

adobe-PDF-iconM2000-BT GATE CONTROLLER INSTALLATION INSTRUCTIONS
