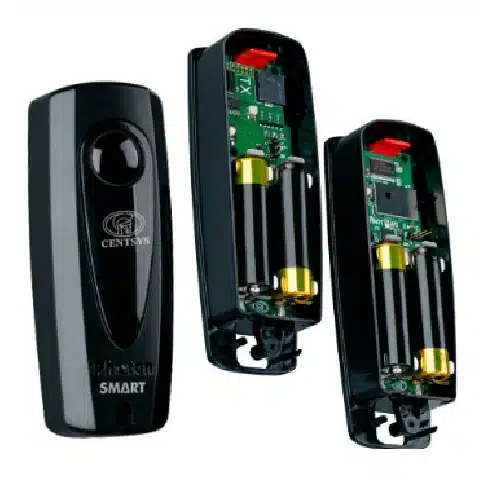

SafePass Photon Battery PE Safety Beam

The Photon Battery PE Safety Beam combines the latest technology with a battery powered transmitter in a compact waterproof IP 54 ABS enclosure.

Until now the only alternative was a reflective safety beam which is not really suitable for outside use.  The Photon receiver is the only component that needs to be connected to the power supply which means no digging across the driveway, saving both time and money.

The Photon PR Battery Safety Beam includes the following features

  • The system is fail-safe and with the very low power consumption. The batteries will last a minimum of two years and then when the battery power is low an onboard buzzer will give a warning signal.
  • The Photon is only 50 mm wide which means it can be fitted onto all standard gate posts.
  • To speed up installation when the beams are set on “installer mode” you will hear the onboard buzzer when they are aligned correctly.
  • In applications where power consumption is critical e.g. solar power sites, the relay can be disabled by selecting open collector mode.
  • Easy setup, great design and a 10 metre range make the Photon beams a pleasure to work with.



For more information download our product datasheet.

adobe-PDF-icon SAFEPASS PHOTON PE SAFETY BEAM DATASHEET



Specification Photon PE Beam
Power Supply Tx – 2 x AA
Rx – 12-24v AC/DC
Power Consumption 30mA @12v DC
Maximum Distance 10m
Contact Rating 3A @ 30v DC
Protection IP 54
Dimensions 130 x 50 x 3.5



For more information download our product datasheet.

adobe-PDF-icon SAFEPASS PHOTON PE SAFETY BEAM DATASHEET

For information about installation and operating instructions please download our PDF or view the video.

adobe-PDF-icon PHOTON PE SAFETY BEAM POCKET INSTALLATION MANUAL

adobe-PDF-icon PHOTON PE SAFETY BEAM – FITTING THE CAPACITOR

adobe-PDF-icon SETTING UP AND ALIGNING PHOTON INFRARED GATE SAFETY BEAMS
