SafePass A105NAX Appello X Speech & Tone Sounders (CONTACT US FOR PRICING)

The SafePass A105NAX Appello X is the next generation of user recordable alarm sounder capable of storing up to 2 minutes of content.



The Appello X Speech and Tone sounders record, store and plays back with unsurpassed clarity, user defined voice messages, music or sounds stored directly to non-volatile memory.



Low current consumption and CD quality reproduction in a robust fire retardant housing ensure these sounders are suitable for all general signalling applications including fire, security and process control.



FOR MORE INFORMATION ON OUR PRODUCTS AND SERVICES,
NEED A QUOTE OR HAVE A QUERY
CALL US ON (07) 3205 1123 OR SUBMIT THIS FORM.
SKU: 584063

The A105NAX – Appello X Speech and Tone Sounder features include:

  • Electronic voice and tone sounder
  • Records, stores and plays back user defined voice messages (4 x 30s messages)
  • High voice and music reproduction quality
  • Message creation via built in microphone or line-in audio input
  • 45 tones — 4 tone stage — Independent volume control for tone and message
  • For multiple installations it is necessary to record messages only once on a master unit
  • Optional LED beacon
  • IP66 rating



For more information download our product datasheet.

adobe-PDF-icon SAFEPASS WARNING LIGHTS & SOUNDERS DATASHEET



  A105NAX Appello X AL105NAX Appello X with LED beacon*
Voltage 10 –30VDC 10 –30VDC
Current 256mA @ 230VAC 413mA @ 230VAC
Weight 1kg 1kg
Sound Output Tone—Max 110dB @1m

Voice—Max 101dB @ 1m

Tone—Max 126dB @1m

Voice—Max 111dB @ 1m

Sound Frequency 45 Tones
Flash rate 4  x 30 second messages
Protection IP66
Duty Continuous
Temp rating (oC) -25 to 55
Cable Entry 2 x 20mm knockouts
Construction Flame retardant ABS
* Specify colour: A = Amber, B = Blue, C = Clear,  G = Green, R = Red

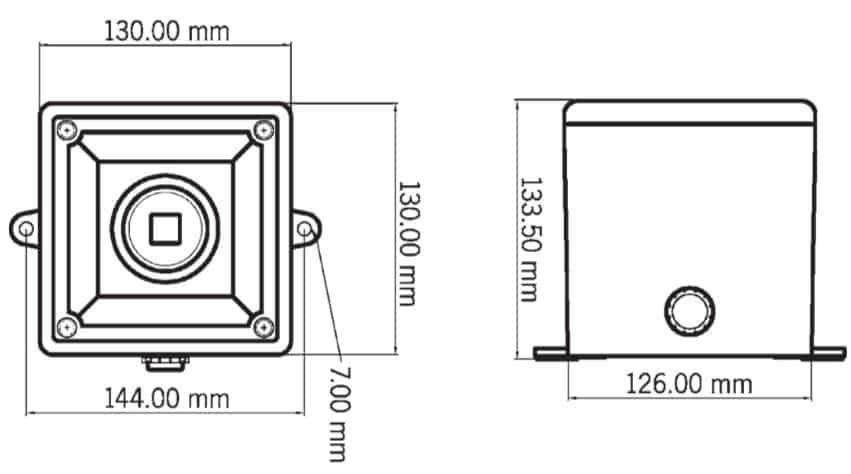

Appello X Diag

For more information download our product datasheet.

adobe-PDF-icon SAFEPASS WARNING LIGHTS & SOUNDERS DATASHEET
