SafePass Domino1100 Industrial Door Activation Sensor

The SafePass Domino1100 sensor is state of the art High Mount (7m) Industrial Door Activation combined with the ability to differentiate between pedestrians and vehicles.



Ideal for large high-speed industrial doors the Domino1100 uses uni-directional detecting technology and large detection area for the timely detection of fast moving vehicles at mounting heights of up to 7m.



Quick Quote
FOR MORE INFORMATION ON OUR PRODUCTS AND SERVICES,
NEED A QUOTE OR HAVE A QUERY
CALL US ON (07) 3205 1123 OR SUBMIT THIS FORM.

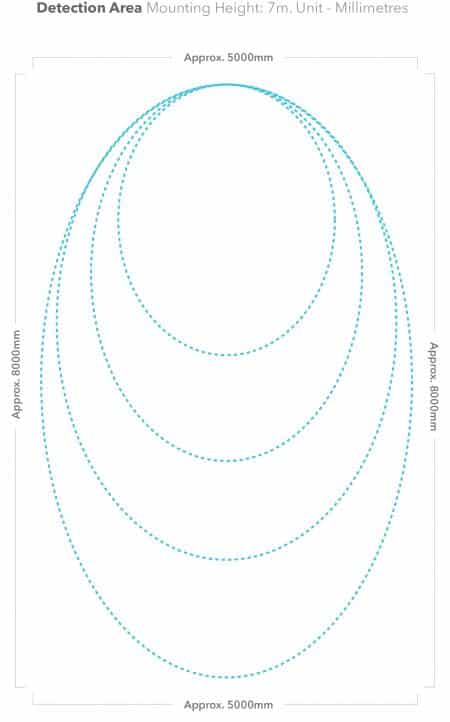

  • Fast Moving Vehicle Detection: Detection area of 5m wide x 8m deep makes Domino1100 ideal for doors approached by fast moving traffic.
  • Increased Pedestrian Safety: Intelligent software can be set to ignore pedestrian traffic whilst detecting vehicular traffic forcing the use of a safer side access pedestrian door.
  • Reduced Building Energy Loss: Partial or full door opening setting possible depending on whether the door is approached by a vehicle or pedestrian.



For more information download our product datasheet.

adobe-PDF-iconSAFEPASS DOMINO1100 INDUSTRIAL DOOR ACTIVATION SENSOR DATASHEET





Model Domino1100 Industrial Door Activation
Detection Method K-Band 24.05GHz – Microwave Motion Detection
Installation Height Max 7000mm (23ft)
Sensor Dimensions 123mm (W), 65mm (H), 57mm (D)
Pattern Adjustment
  • Width Adjustment: Antenna adjustment left/right up to 3 steps
  • Width Adjustment: Sensitivity Adjustment (Potentiometer)
  • Depth Adjustment: Antenna adjustment up/down 0° – 40° in 5° steps
  • Depth Adjustment: Sensitivity Adjustment (Potentiometer)
Presence Timer None
IP Rating 54
Power Supply 12 to 36V DC or 12 to 28V AC
Power Consumption DC24V-50 [mA] (Max)
Output Relay
  • Main Relay: yellow & white wires
  • Vehicle Relay: grey & pink wires
Relay Hold Time Approx. 0.2 – 5sec selectable
LED Indication
  • Power On = Green On
  • Main Relay Active = Red On
  • Vehicle Relay Active = Green/Red Flashing Fast
  • Initialisation (after power on) = Green/Red Flashing Slow
  • Command Received = Green Flashing
  • Error = Red Flashing
Operating Temperature -20°C to +60°C, (-4°F to 140°F)
Weight 120g (0.26 lbs)
Detection Speed 0.1 m/s minimum
Available Colours Black
Accessories Provided Connection Cable, Mounting Template, Mounting Screws

Installation Instructions



For more information download our product datasheet.

adobe-PDF-iconSAFEPASS DOMINO1100 INDUSTRIAL DOOR ACTIVATION SENSOR DATASHEET



For information about installation and operating instructions please download our PDF.

adobe-PDF-icon SAFEPASS DOMINO1100 INDUSTRIAL DOOR SENSOR INSTALLATION INSTRUCTIONS
