SafePass HR400-IND Industrial Door Activation & Pedestrian Safety Sensor

Door activation with pedestrian safety in one sensor.



Industrial door activation combined with static presence detection safety technology at mounting heights of up to 4.7m.



Detection area of about 6m wide x 4m deep when installed at a height of 4.7m.  Active Infrared technology.

Quick Quote
FOR MORE INFORMATION ON OUR PRODUCTS AND SERVICES,
NEED A QUOTE OR HAVE A QUERY
CALL US ON (07) 3205 1123 OR SUBMIT THIS FORM.
  • Timely Door Opening: Large adjustable detection area ensures timely door opening
  • Wide Detection Area: 6m wide x 4m deep detection area ensures timely detection of fast moving traffic approaching all types of industrial door
  • Optimize Pedestrian Safety: 2 row infrared safety curtain focused directly in front of the industrial door face protects pedestrians from injury caused by the moving door
  • Eliminate Door/Goods Damage: Infinity presence timer prevents door closures on static objects left in the door close zone
  • Energy Efficiency: Uni-directional detecting technology reduces building energy losses by as much as 20%
  • Accurately adjustable detection area reduces false door activations


For more information download our product datasheet.

adobe-PDF-iconSAFEPASS HR400-IND INDUSTRIAL DOOR SAFETY SENSOR DATASHEET

Model HR400-IND Industrial Door Activation + Safety
Detection Method Active Infrared Detection
Installation Height Max 2000mm to 4700mm (8ft to 15ft)
Sensor Dimensions 265mm (W), 61mm (H), 37.5mm (D)
Pattern Adjustment ·  Width Adjustment: Wide or Narrow Pattern (Side Dials)

·  Depth Adjustment: Sensor body angle 0°to 15°in 5 steps

·  Depth Adjustment: 2 to 5 rows of detection (Dip Switch)

Presence Timer 2s / 60s / 10m / ∞
IP Rating 54
Power Supply 12 to 24V AC or DC } 10%
Power Consumption AC12V-2.5[VA], DC12V-140[mA]

AC24V-2.5 [VA], DC24V-65 [mA]

Output Relay Relay contact: Form 1C Relay DC 50V, 0.1A (Resistor Load)
Relay Hold Time Approx. 0.5 sec
Operating Temperature -20°C to +60°C, (-4°F to 140°F)
Weight 290g (0.64 lbs)
Available Colours Black or Silver
Accessories Provided ·   8m Connection Cable

·   Mounting Template

·   Mounting Screws

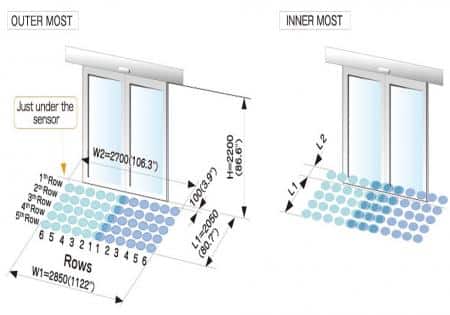

Detection Area (mm/inches)

For more information download our product datasheet.

adobe-PDF-iconSAFEPASS HR400-IND INDUSTRIAL DOOR SAFETY SENSOR DATASHEET

For information about installation and operating instructions please download our PDF.

adobe-PDF-icon SAFEPASS HR400-IND INDUSTRIAL DOOR SAFETY SENSOR USER MANUAL
