Sentinel KM Heavy Duty Industrial 6 Metre Swing Gate Opener

High-quality German engineering – Industrial strength swing gate opener-  High duty cycle – Up to 700 operations a day – Safety sensing



The Sentinel KM linear swing gate opener is a high quality, heavy-duty swing gate opener suitable to large industrial gates up to 6 metres and can handle up to 700 operations a day

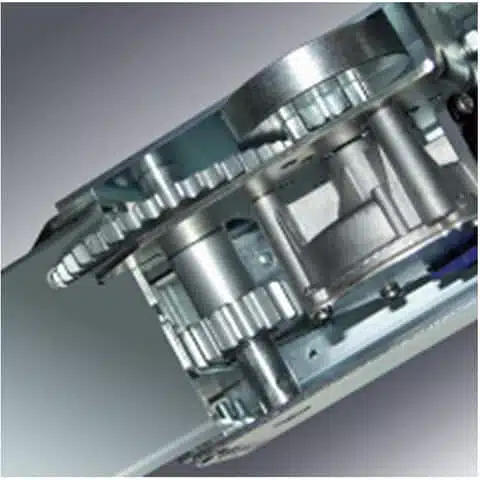

The Sentinel KM has machined steel gears that drive an internal gear rack to open and close the gate and features impact resistant ABS with soft start and stop, safety sensing and an easily operated emergency release. The elegant housing is constructed of anodized aluminium.

FOR MORE INFORMATION ON OUR PRODUCTS AND SERVICES,
NEED A QUOTE OR HAVE A QUERY
CALL US ON (07) 3205 1123 OR SUBMIT THIS FORM.
  • IF YOU REQUIRE SOLAR POWERED OPERATION: please complete the following additional information. (Note: Solar is ONLY available with the Vantage and Bulwark VA swing gate operators)

It is recommended that all gates over 4 metres in length have a lock. Rotech can also supply an electromagnetic bolt which works with the operator’s in built control panel, to securely lock the swing gate. The lock can be mounted vertically or horizontally on the gate.

Manufactured by a German company with more than 35 years’ experience and over 50,000 boom gates and gate openers installed in 70 countries you are assured this swing gate opener will give you many years of reliable operation.

The Sentinel KM Heavy Duty Swing Gate Operator includes the following features

  • The KM has machined steel gears that drive a gear rack to open and close the gate
  • Elegant housing made of anodized aluminium and impact resistant ABS
  • Soft start and stop reduces wear on the operator and the gate
  • Safety sensing and safety PE beams protect vehicles and pedestrians
  • Easily operated emergency release if there is a power failure
  • The electromagnetic bolt  is 20 mm diameter made of stainless steel which will securely lock the swing gate.



For more information download our product datasheet.

adobe-PDF-iconSENTINEL KM HEAVY DUTY SWING GATE OPERATOR DATASHEET

Sentinel KM Swing Gate  OpenerKM 400KM 600
Max. length of wing with max.50% wind resistance4000mm6000mm
Max. surface area of wing with max.50% wind resistance10.0sqm12.0sqm
Max. weight of wing400kg500kg
Requires electromagnetic bolt or lockYesYes
Emergency release at the gate openerBy special key
Run time (depends on the stroke & the speed selected)12 – 16 secs24 secs
Max. opening angleUp to 120°, depending on the mounting dimensions
External stops required at GATE OPEN positionYesYes
External stops required at GATE CLOSED positionYesYes
Power supply230V/50Hz230V/50Hz
Motor voltage24V dc24V dc
Duty cycle50%50%



For more information download our product datasheet.

adobe-PDF-iconSENTINEL KM HEAVY DUTY SWING GATE OPERATOR DATASHEET

For information about installation and operating instructions please download our PDF.

adobe-PDF-iconSENTINEL KM HEAVY DUTY SWING GATE OPERATOR INSTALLATION MANUAL
