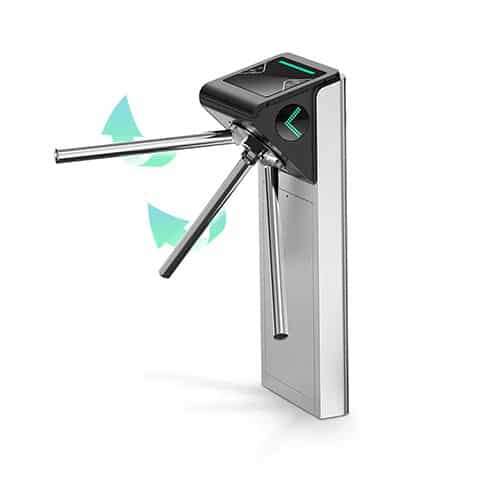

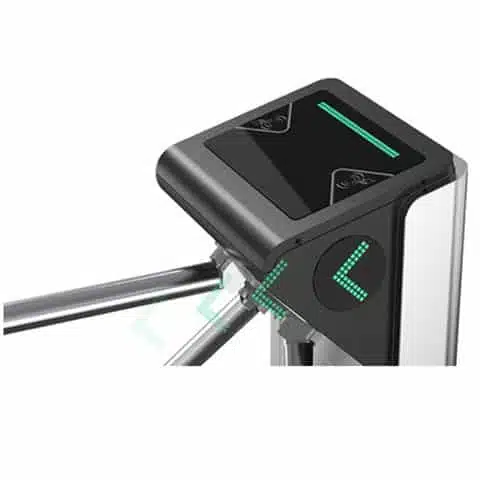

TriStar SL3 Slim-Line Waist Height Turnstiles

$3,908.30 (Incl GST)

These slim-line waist height turnstiles are an economical option for many security and access control applications. The TriStar SL3 turnstiles are widely used in gyms, apartments, factories, large office blocks, sports centres and public buildings,

Designed for use in high volume traffic areas to control pedestrian access the TriStar SL3 turnstile has an average throughput of 25 people per minute.



A gentle push starts the arm revolving ensuring a smooth operation and the DC brushless motor allows the rotation speed to be adjusted to suit the situation.







FOR MORE INFORMATION ON OUR PRODUCTS AND SERVICES,
NEED A QUOTE OR HAVE A QUERY
CALL US ON (07) 3205 1123 OR SUBMIT THIS FORM.
SKU: 70213

The cabinet is made from 304 stainless steel and its sophisticated elegant design makes it suitable for even the most up-market sites.

The TriStar SL3 features highly visible illuminated indicators showing the card has been accepted.  A memory input records the number of cards presented and doesn’t lock the turnstile until all users recorded have passed through the turnstile.  Compatible with any type of access control, ticketing or proximity systems, a RFID or barcode reader can be installed inside the turnstile.

Safe exit from a building in an emergency is an essential component of any access control equipment. When connected to the fire alarm or other emergency system the TriStar active arm automatically drops allowing fast exit from the building.  Once the emergency is over the arm automatically reverts to the closed position ready to resume normal operation.

The turnstile is free-standing, and is installed by bolting to the floor and all electrical cabling is concealed within the frame.

The TriStar SL3 Waist Height Turnstile includes the following features:

  • Easy set up using the LED display.
  • Highly visible indicators to show tag has been accepted.
  • The control panel shows the status of all key components.
  • Accurate positioning using an encoder.
  • Multiple input and output ports, can be configured to user requirements.
  • When the arm is returning to the default position it slows so that there is no mechanical force on the internal components.
  • The rotation speed of the arm while entering the turnstile can be adjusted.
  • If the arm is forced without presenting a card the arm locks for 4 seconds.
  • During a power failure or an emergency the arm drops and will automatically reposition itself when the emergency is over.
  • 304 grade stainless steel.
  • RS485 port.



Optional features

  • Inbuilt up/down counter with battery back up
  • Ethernet connection
  • Audible alarm



For more information download our product datasheet.

adobe-PDF-icon  TRISTAR SL3 WAIST HEIGHT TURNSTILE PRODUCT DATASHEET

SpecificationsTriStar SL3 Waist Height Turnstile
Power Consumption50W
Housing Size370 x 100 x 950 mm
Housing Material304 Brushed Stainless Steel
Arm Turning DirectionBi-directional
Pass speedAdjustable up to 20 seconds25 persons/min
Lane Width550-600 mm
Power Supply200Vac 50Hz
Input signal optionalDC 12V  pulse signal
Communication InterfaceRS485
Arm drop while power offYes
Working Temperature– 15°C  -+ 70°C
Working EnvironmentOutdoor
IP RatingIP55
Warranty1 Year
Gross Weight75 KG



For more information download our product datasheet.

adobe-PDF-icon  TRISTAR SL3 WAIST HEIGHT TURNSTILE PRODUCT DATASHEET

For information about installation and operating instructions please download our PDF.

adobe-PDF-icon TRISTAR SL3 WAIST HEIGHT TURNSTILE INSTALLATION INSTRUCTIONS
